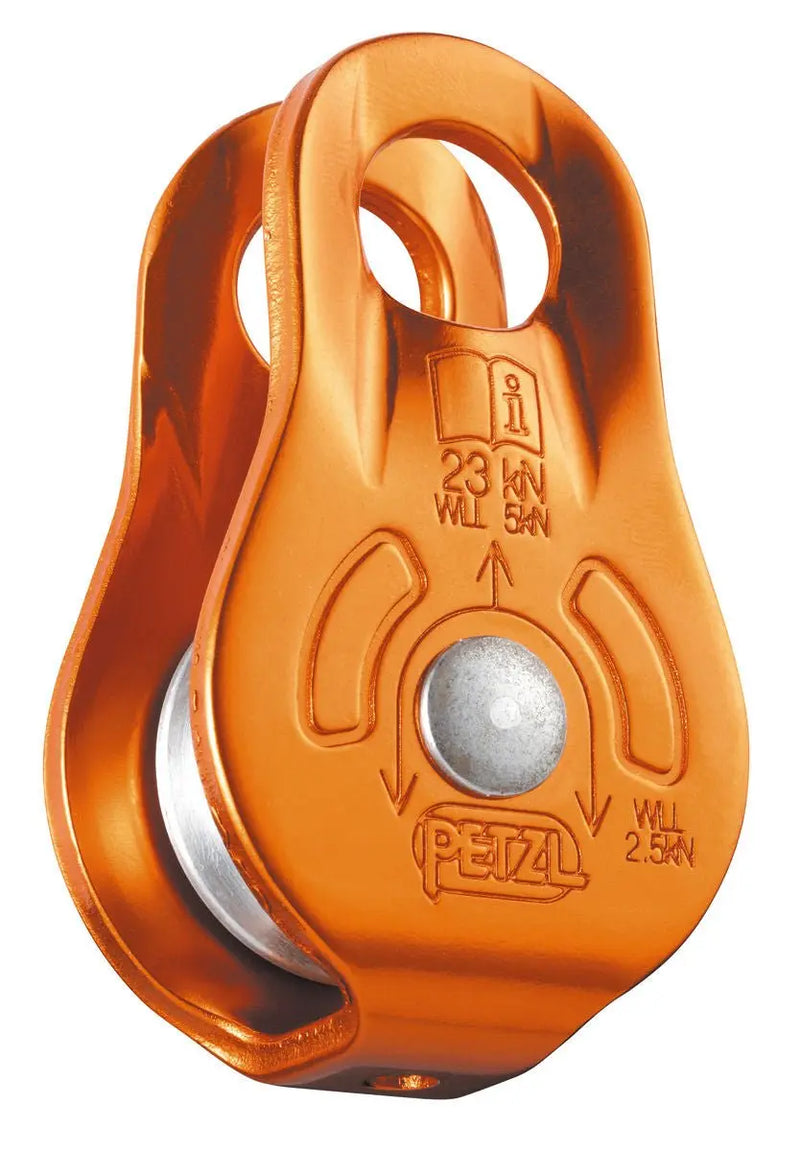

The FIXE pulley is lightweight, compact, and quick to install on the rope. It offers a good balance between weight and strength.
Click here to download the EU Declaration of Conformity
Description
- Lightweight, compact pulley
- Designed for hauling systems and deviations
- Fixed side plates allow quick installation and coupling with a rope clamp
- Sheave mounted on self-lubricating bushings for efficiency
Specifications
- Material(s): aluminum side plates, aluminum sheave
- Certification(s): CE EN 12278, UKCA, UIAA
References
| References | P05SO |
|---|---|
| Weight | 90 g |
| Min. rope diameter | 7 mm |
| Max. rope diameter | 13 mm |
| Sheave type | self-lubricating bushings |
| Sheave diameter | 21 mm |
| Efficiency | 71 % |
| Working load | on one rope strand: 2.5 kN |
| Working load | 5 kN |
| Breaking strength | 23 kN |
| Guarantee | 3 years |
| Inner Pack Count | 1 |
